OTC 1200 Manual Sleeve Puller Set
Sleeve Puller/Installer Sets
These sets work on a wide array of truck, bus, and tractor engines, as well as those in other vehicles. They'll handle wet and dry sleeves – and you won't need to remove head studs. Save time, effort, and money.
- Choice of two sets: manual or 17½ ton hydraulic powered.
- Wide range of adapter plates available to fit most engines.

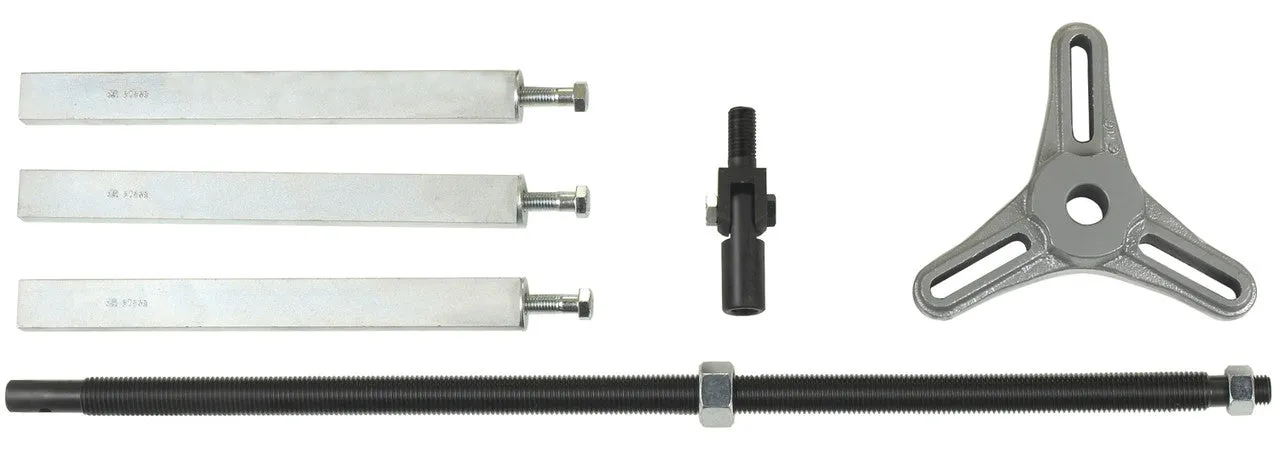

Manual Sleeve Puller Set
This manually operated, screw-powered device removes cylinder sleeves from most truck, bus, and tractor engines. Adapter plates (not included in the set) accommodate a wide range of bore sizes. The puller allows one technician to handle sleeve-puller tasks
** Not recommended for MACK engines (use No. 1202 set)
Set Consists Of:
- 24824 - Thrust Washer
- 37592 - Three-Way Head
-
27908 - 13" Risers (3 required)
- 22205 - Forcing Nut
- 208675 - Swivel Assembly
- 10088 - Cap screws, Hex hd. (3)
- 10586 - Flat Washers (3)
- 11466 - Thrust Bearing
- 32976 - Pulling Screw
No. 1200 – Manual sleeve puller set. Wt., 26 lbs.
